Price Includes Full Service
Your price quote includes your new battery, labour, and recycling of old battery.

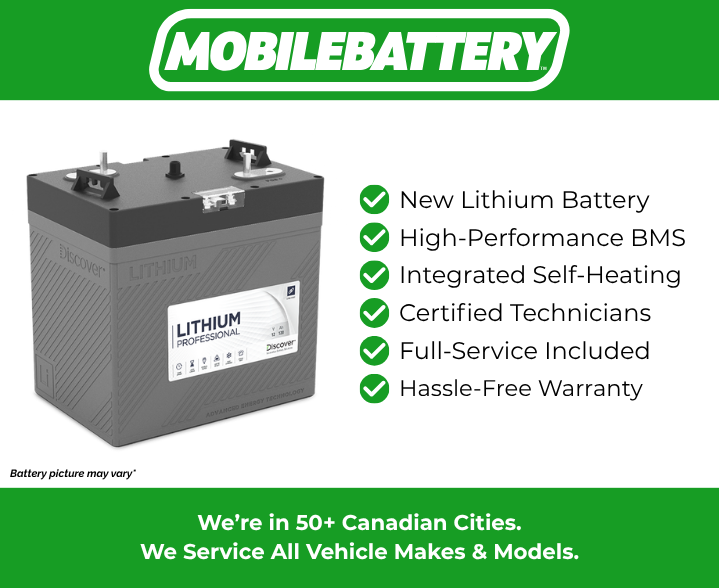

LITHIUM PROFESSIONAL Battery
Professional Lithium Upgrades
Discover® LITHIUM PROFESSIONAL LiFePO4 batteries are the ultimate drop-in upgrade for standard BCI 6V, 8V, and 12V GC (Golf Cart) models.
High-Performance Power & Reliability
Equipped with a high-current Battery Management System (BMS), these units deliver reliable peak power and feature 1C continuous charge and discharge rates. Engineered for tough climates, they support COLD CHARGE capabilities in temperatures as low as -20°C/-4°F. Independently tested for both safety and peak performance, they easily outperform traditional lead-acid batteries and can handle continuous Partial State of Charge (PSOC) use without suffering any degradation.
Hassle-Free Onsite Installation
Upgrading your commercial equipment or golf cart shouldn't be a headache. At MobileBattery, we ensure battery replacement is made simple. Wherever you are, at your home or your business, our trained and fully equipped certified technicians will come to you. Let our team do all the work so you can get back to business.
How MobileBattery Works
We Come To You
Our expert team arrives wherever you are, handling all makes and models with ease.
The Green Team
We're committed to sustainability, recycling your old battery with the highest environmental standards.
Simplified Payment
We accept Credit (Visa, Mastercard, American Express, Discover, JCB, Union Pay), Debit, Cheque, ETF or Cash.
Battery Specifications
MECHANICAL SPECIFICATIONS
| Industry Reference |
BCI: GC2 |
| Length A (in/mm) |
10.2 |
260 |
| Width B (in/mm) |
7.1 |
180 |
| Height C (in/mm) |
10 |
254 |
| Total Height D (in/mm) |
10.8 |
275 |
| Weight (lbs/kgs) |
26.5 |
12 |
| Terminal * |
ST 5/16 |
| Cell(s) |
Prismatic 12S1P |
| Case Material |
|
| IP Rating |
67 |
| Electrolyte |
LiFePO4 |
NOTE 1: Dimensions have a ±2 mm (0.08 in) tolerance. Weights may vary.
NOTE 2: Refer to terminal guide on website for torque values.
ELECTRICAL SPECIFICATIONS
| Open Circuit Voltage (V) |
38.4 |
| Charge Voltage (Bulk Vdc) |
41.4 - 42.6 |
| Max Absorption Voltage (U1 Vdc) |
41.4 |
| Float Voltage (U2 Vdc) |
40.8 |
| BMS Max. Voltage protection (Vdc) |
43.8 (Approximately) |
| Suggested Low Voltage Cutoff (Vdc) * |
36 |
| BMS Min. Voltage protection (Vdc) |
30.0 (Approximately) |
| Max. Continuous Charge Current (I Max. Adc) |
29 |
| Min. Finishing Charge Current (I Min. Adc) |
2%-3% C1 / Min. 200ma |
| Max Continuous Discharge Current (Adc) |
58 |
| Max Peak Current (Adc) |
90 A RMS (3 sec) |
| Self-Discharge (25°C / 77°F) |
< 3% per month |
| Charge Temperature |
Min: -20°C (-4°F) | Max: 45°C (113°F) |
| Discharge Temperature |
Min: -17°C | Max: 62°C (1.4°F to 143.6°F) |
| Storage Temperature |
Min: -20°C | Max: 45°C (-4°F to 113°F) |
Electrical Specifications at 25°C.
* Do not exceed maximum voltage at the battery terminals.
CAUTION: Extra considerations must be given to depths of discharge, operating voltages and currents when designing systems for use at maximum operating temperatures.
PERFORMANCE SPECIFICATIONS
| Nominal Energy (kWh) |
1.15 |
| Usable DoD |
100% |
| Rated Wh Capacity (1C) |
1152 |
| Rated Ah Capacity (1C) |
30 |
| Minutes of Discharge |
| @25A |
@56A |
@75A |
@85A |
@100A |
| 72 |
32 |
24 |
21 |
18 |
