Price Includes Full Service
Your price quote includes your new battery, labour, and recycling of old battery.

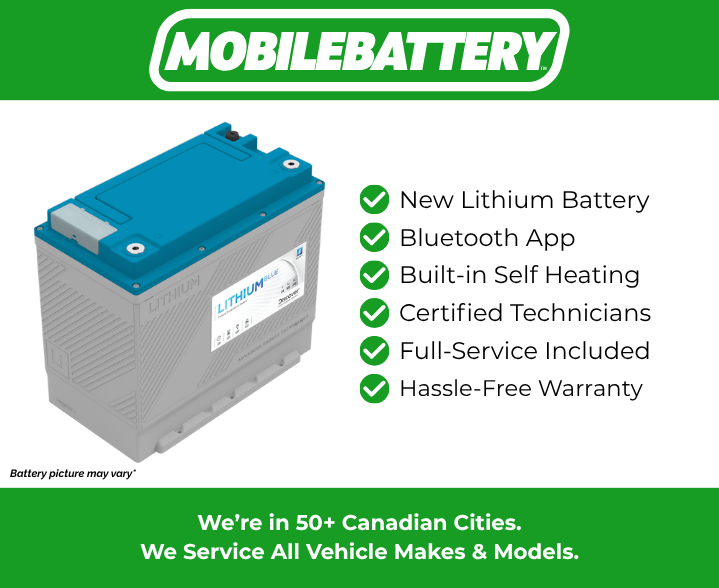

LITHIUM BLUE Battery
Premium Lithium Performance
Experience the next level of reliable power with Discover® LITHIUM BLUE LiFePO4 Premium Series batteries. These units deliver long-lasting life, lightning-fast charging, and advanced BMS-controlled safety. Plus, you can easily track your battery's state of charge, voltage, current, and temperature in real-time right from your phone via Bluetooth.
Designed for Excellence
Built with intelligent engineering in mind, LITHIUM BLUE batteries feature terminal protection, field-serviceable fuses, and convenient suitcase-style carrying handles.
Hassle-Free Upgrades
These batteries are exceptionally safe, scalable for more capacity, and built to perform. Whether you are upgrading your RV or marine vehicle , our trained and fully equipped certified technicians will come to you. We make upgrading to lithium simple—just let our team do all the work.
How MobileBattery Works
We Come To You
Our expert team arrives wherever you are, handling all makes and models with ease.
The Green Team
We're committed to sustainability, recycling your old battery with the highest environmental standards.
Simplified Payment
We accept Credit (Visa, Mastercard, American Express, Discover, JCB, Union Pay), Debit, Cheque, ETF or Cash.
Battery Specifications
MECHANICAL SPECIFICATIONS
| Industry Reference |
BCI: GC12 DIN: |
| Length A (in/mm) |
12.2 |
312 |
| Width B (in/mm) |
7.0 |
177 |
| Height C (in/mm) |
10.9 |
276 |
| Total Height D (in/mm) |
10.9 |
276 |
| Weight (lbs/kgs) |
44.10 |
20.00 |
| Terminal * |
M8 |
| Cell(s) |
Prismatic 8S1P |
| Case Material |
|
| IP Rating |
67 |
| Electrolyte |
LiFePO4 |
NOTE 1: Dimensions have a ±2 mm (0.08 in) tolerance. Weights may vary.
NOTE 2: Refer to terminal guide on website for torque values.
ELECTRICAL SPECIFICATIONS
| Open Circuit Voltage (V) |
25.6 |
| Charge Voltage (Bulk Vdc) |
27.6 - 28.4 |
| Max Absorption Voltage (U1 Vdc) |
27.6 |
| Float Voltage (U2 Vdc) |
27.2 |
| BMS Max. Voltage protection (Vdc) |
29.2 |
| Suggested Low Voltage Cutoff (Vdc) * |
24 |
| BMS Min. Voltage protection (Vdc) |
20.0 |
| Max. Continuous Charge Current (I Max. Adc) |
100 |
| Min. Finishing Charge Current (I Min. Adc) |
2%-3% C1 / Min. 200ma |
| Max Continuous Discharge Current (Adc) |
100 |
| Max Peak Current (Adc) |
250 |
| Self-Discharge (25°C / 77°F) |
< 3% per month |
| Charge Temperature |
Min: 0°C (32°F) | Max: 55°C (131°F) |
| Discharge Temperature |
Min: -20°C (-4°F) | Max: 60°C (140°F) |
| Storage Temperature |
Min: -10°C (14°F) | Max: 30°C (86°F) |
Electrical Specifications at 25°C.
* Do not exceed maximum voltage at the battery terminals.
CAUTION: Extra considerations must be given to depths of discharge, operating voltages and currents when designing systems for use at maximum operating temperatures.
PERFORMANCE SPECIFICATIONS
| Nominal Energy (kWh) |
2.56 |
| Usable DoD |
100% |
| Rated Wh Capacity (1C) |
2560 |
| Rated Ah Capacity (1C) |
100 |
| Minutes of Discharge |
| @25A |
@56A |
@75A |
@85A |
@100A |
| 240 |
107 |
80 |
70 |
60 |
